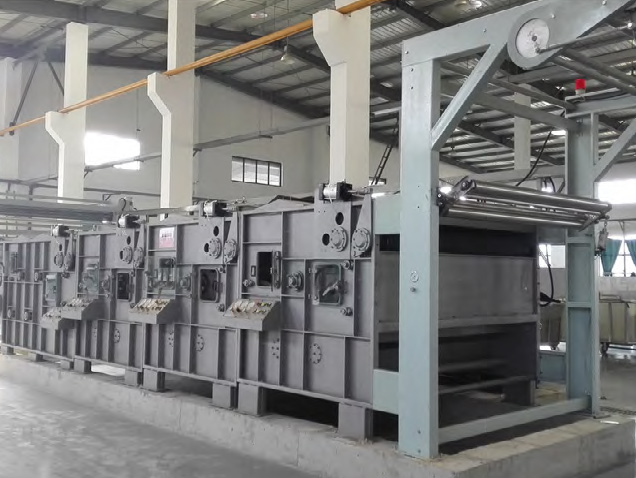

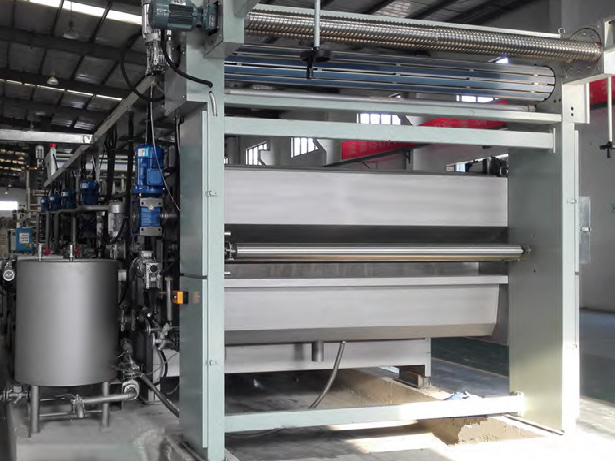

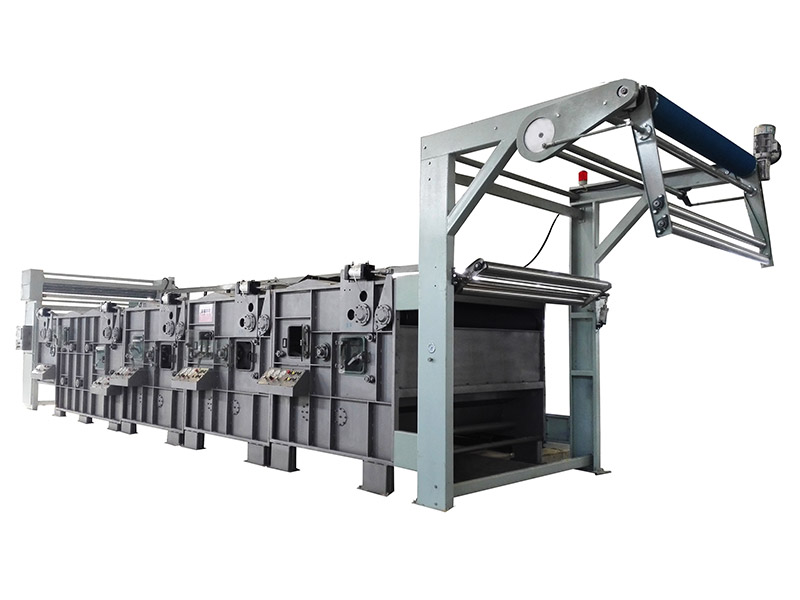

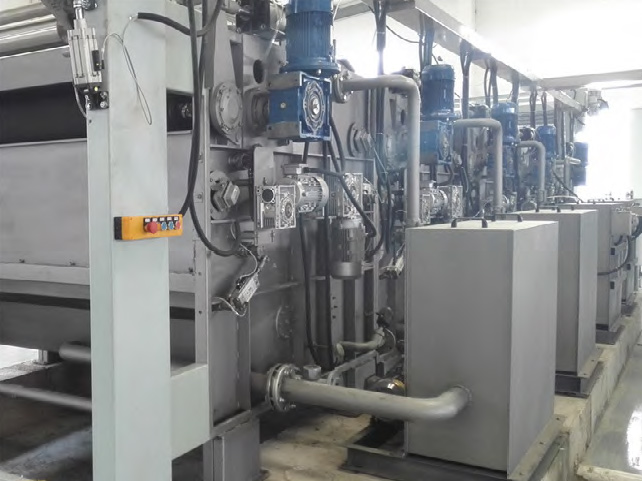

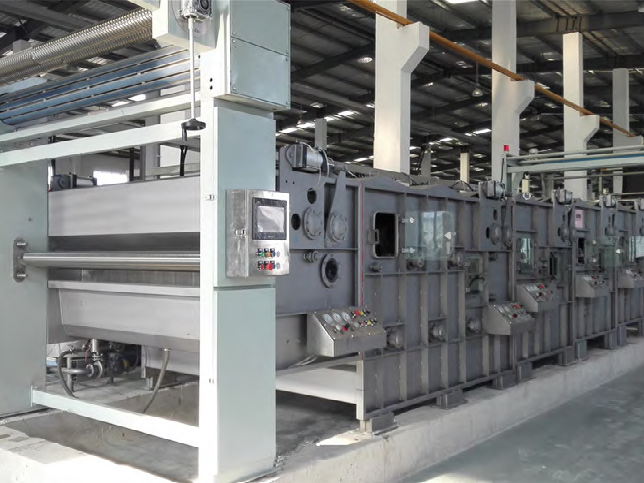

Open Width De-oiling Washing Machine For Knitted Fabric

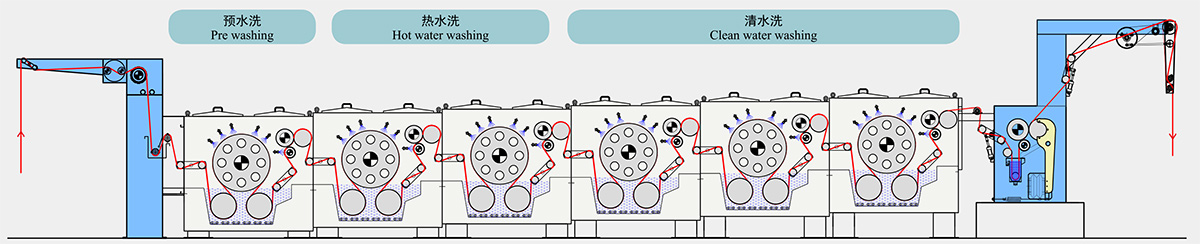

Open width degreasing, preshrinking and flat washing process of chemical fiber, spandex and other high elastic force knitted fabrics.


Production capacity: 0.8 tons of cloth per hour

Water consumption: 4-6 tons of water is consumed to produce 1 ton of cloth

Steam consumption: 0.4 tons of steam is consumed to produce 1 ton of cloth


Machine speed:50m/min

Working width:1800-3600mm

Heating method:Steam

Steam and compressed air pressure:0.4MPa

Total power:55KW

Overall dimension(Type220):(L×W×H)16000×4100×2900mm


●German imported tension control system to ensure low tension operation

●High speed response of Schneider high end communication inverter in France

●Electric control response time 0.4ns, Constant tension 0.6kg

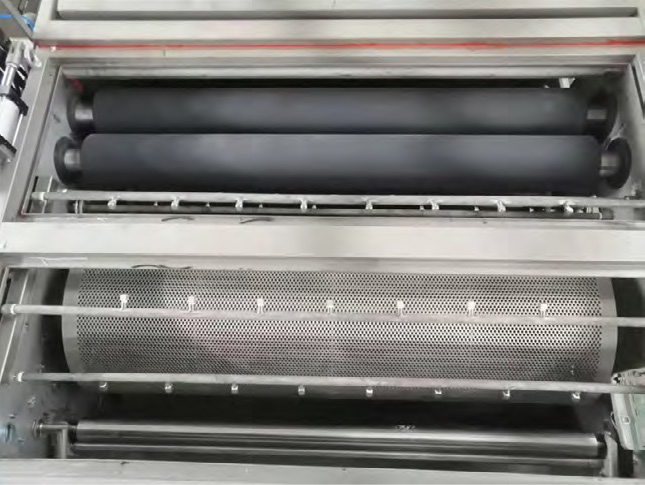

●Conical high-pressure spray, no dead angle for water washing

●Automatic feeding and liquid level detection system

●Running low tension to ensure no curling before rolling

●High efficiency, less labor, greatly liberating the dye tank capacity


●No creases, No curls, No pilling

●No hairiness, No scratch,Even cloth surface

●Stable weight, Even and efficient oil removal
